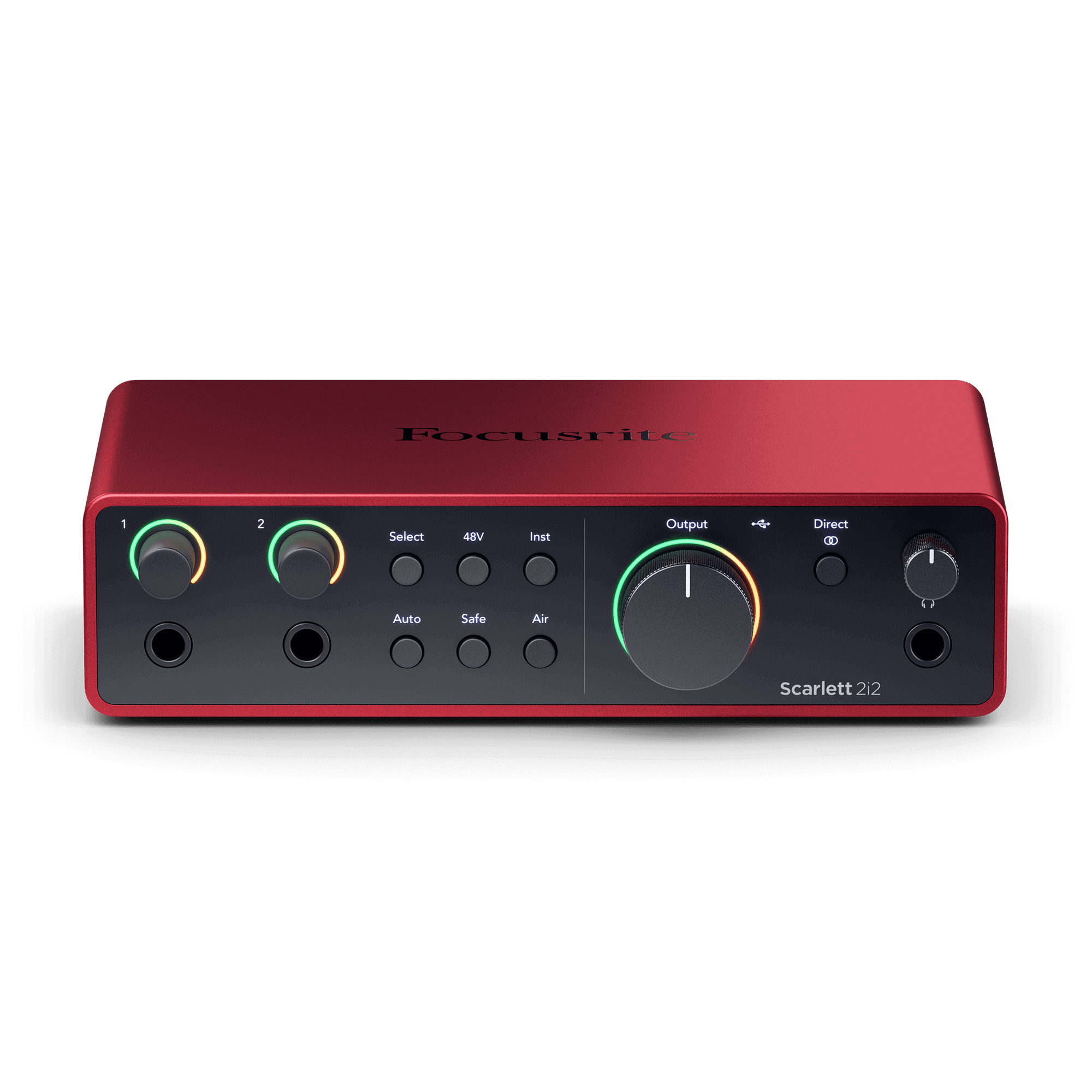

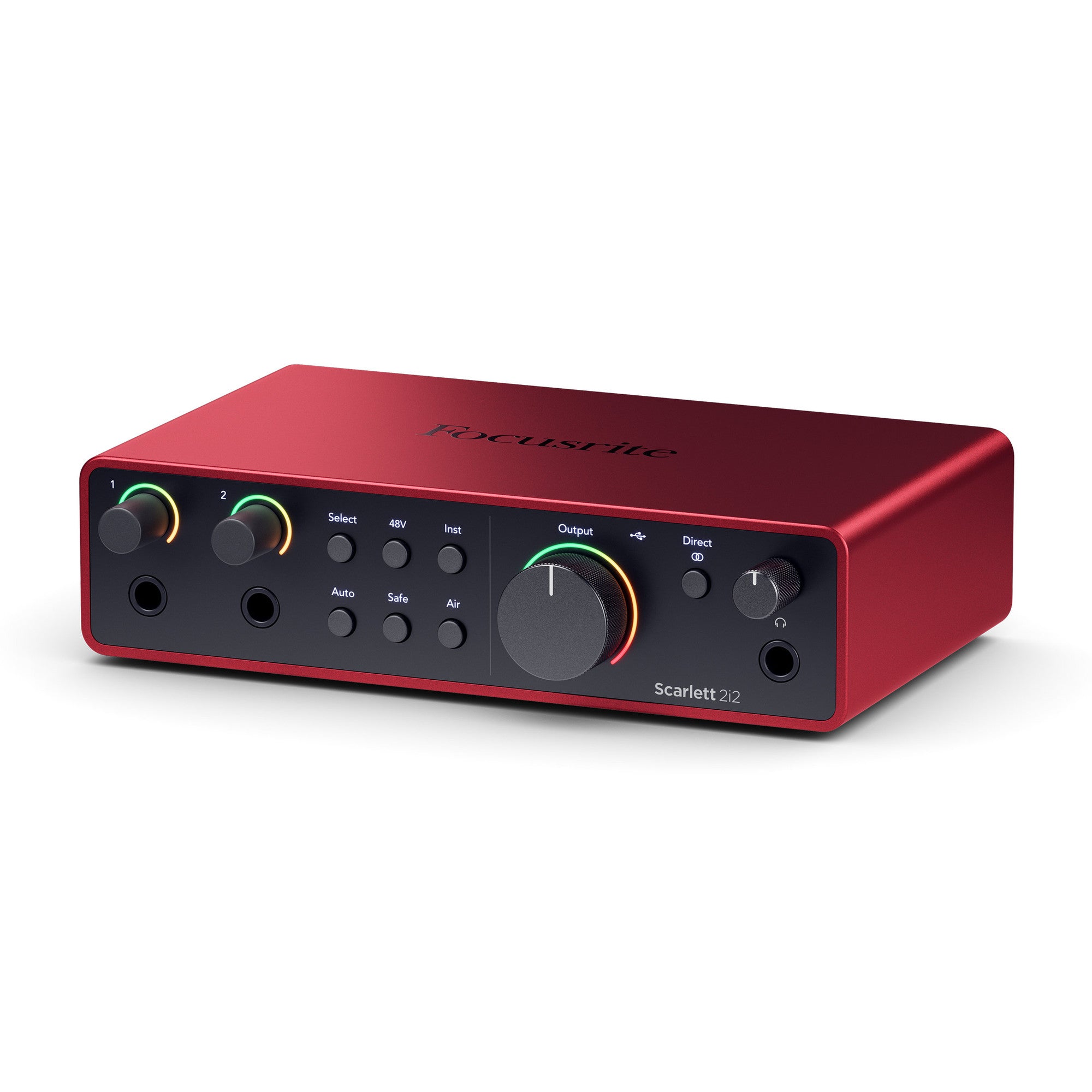

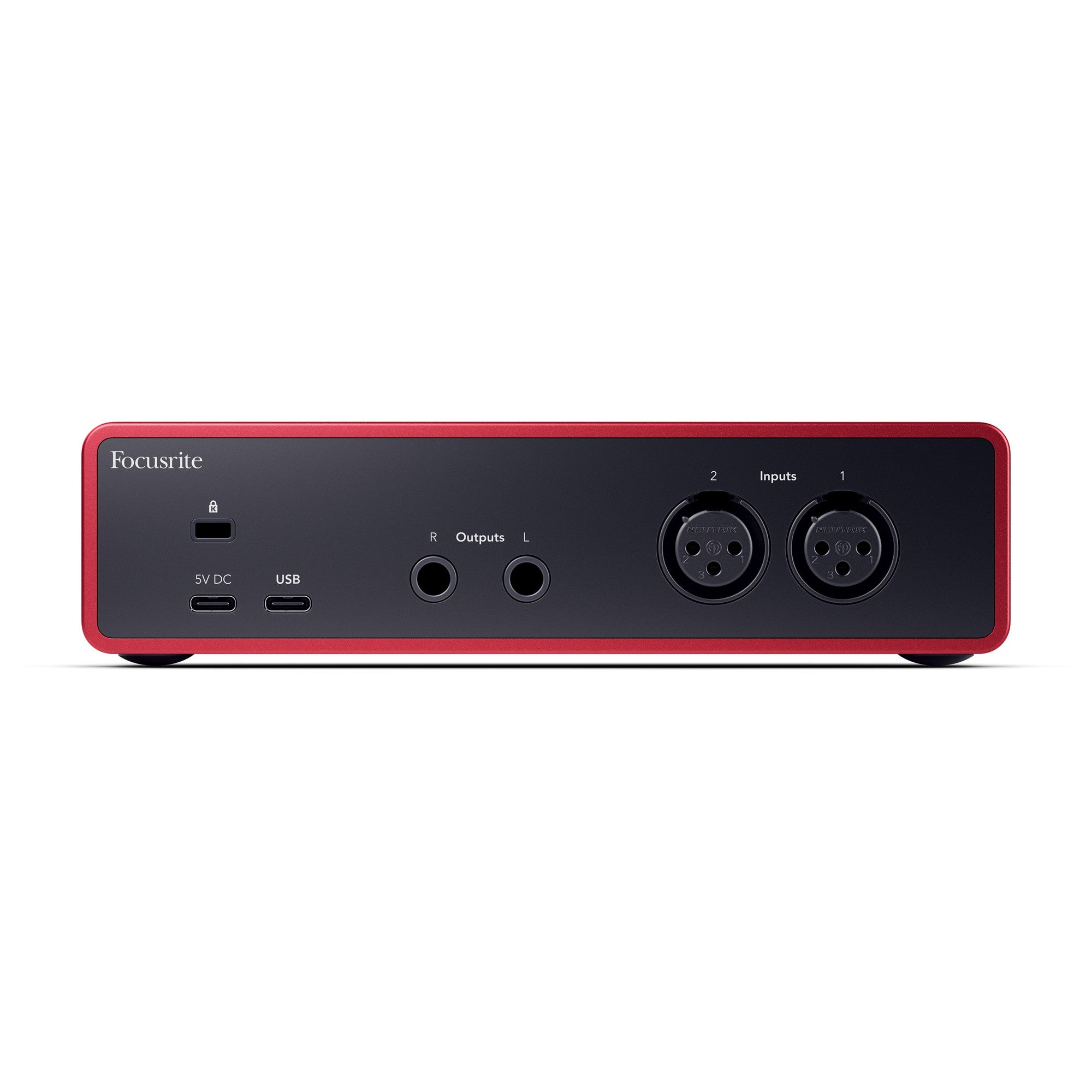

Focusrite Scarlett 2i2 (4th Gen) Audio Interface

The original studio-quality 2-in, 2-out interface, remastered for the artist. 2i2 features two of our most detailed, ultra-low-noise mic preamps, with line/instrument inputs on the front so you can plug your guitars and synths straight in, delivering pro studio–grade sound with 120dB of dynamic range. Plus, with Auto Gain and Clip Safe, you’ll never need to worry about your levels when recording.

Features :

• Two ultra-low-noise mic preamps with front-panel line/instrument inputs
• Two Air preamp modes for classic console sound
• Auto Gain and Clip Safe modes
• Includes Hitmaker Expansion software bundle
• Plus Pro Tools Intro+ and Ableton Live Lite

Specifications :

Overview

• Number of Microphone Preamps - 2
• Phantom Power - Yes
• Instrument Inputs - 2
• Line Inputs - 2
• Air Mode - Yes
• Auto Gain - Yes
• Clip Safe - Yes
• Line Outputs - 2
• Headphone Outputs - 1
• Loopback - Yes
• Connectivity - USB Type-C
• Protocol - USB 2.0
• Form Factor - Desktop
• Simultaneous I/O - 4 x 2 (including Loopback inputs)
• A/D Resolution - 24-bit/192 kHz
• Bus Powered - Yes (900mA)

Instrument inputs

• Frequency Response - 20-20kHz ± 0.15dB
• Dynamic Range - 113dB (A-Weighted)
• THD+N - -80dB @ minimum gain
• Maximum Input Level - 12dBu
• Gain Range - 62dB
• Impedance - 1MΩ

Line outputs (Balanced)

• Frequency Response - 20-20kHz ± 0.02dB
• Dynamic Range - 120dB
• THD+N - -109dB
• Maximum Output Level - 16dBu
• Impedance - 100Ω

Headphone outputs

• Frequency Response - 20-20kHz ± 0.1dB @ 33Ω / 300Ω
• Dynamic Range - 112dB @ 33Ω and 115dB @ 300Ω
• THD+N - -99dB @ 33Ω and -108dB @ 300Ω

• Maximum Output Level - 2.5dBu into 33Ω and 10dBu into 300Ω

• Maximum Output Power - 32mW into 33Ω and 22mW into 300Ω

• Impedance - 50Ω

Supported sample rates

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Dimensions

• Height - 47.5mm
• Width - 180mm
• Depth - 117mm
• Weight - 0.595kg

Analogue to Digital Converter

• THD+N - -110dB
• Dynamic Range - 120dB

Microphone inputs

• Frequency Response - 20-20kHz ± 0.06dB
• Dynamic Range - 116dB (A-Weighted)
• THD+N - -100dB @ 8dB gain
• Noise EIN - -127dBu (A-Weighted)
• Maximum Input Level - 16dBu
• Gain Range - 69dB
• Impedance - 3kΩ

Digital to Analogue Converter

• THD+N - -115dB
• Dynamic Range - 130dB (A-Weighted)

Line inputs

• Frequency Response - 20-20kHz ± 0.05dB
• Dynamic Range - 115.5dB (A-Weighted)
• THD+N - -100dB @ 8dB gain
• Maximum Input Level - 22dBu
• Gain Range - 69dB
• Impedance - 60kΩ

Power

• USB - 900mA
• External (Optional) - 4.5W
