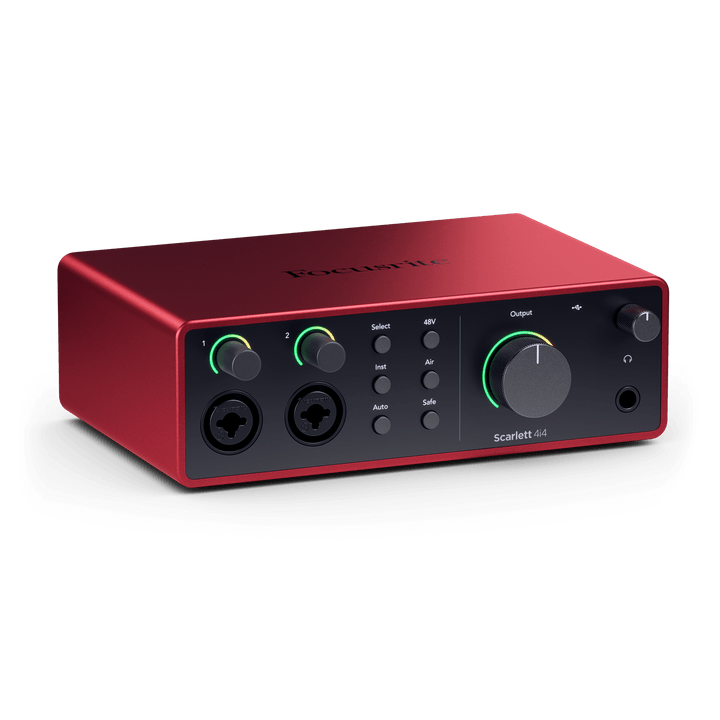

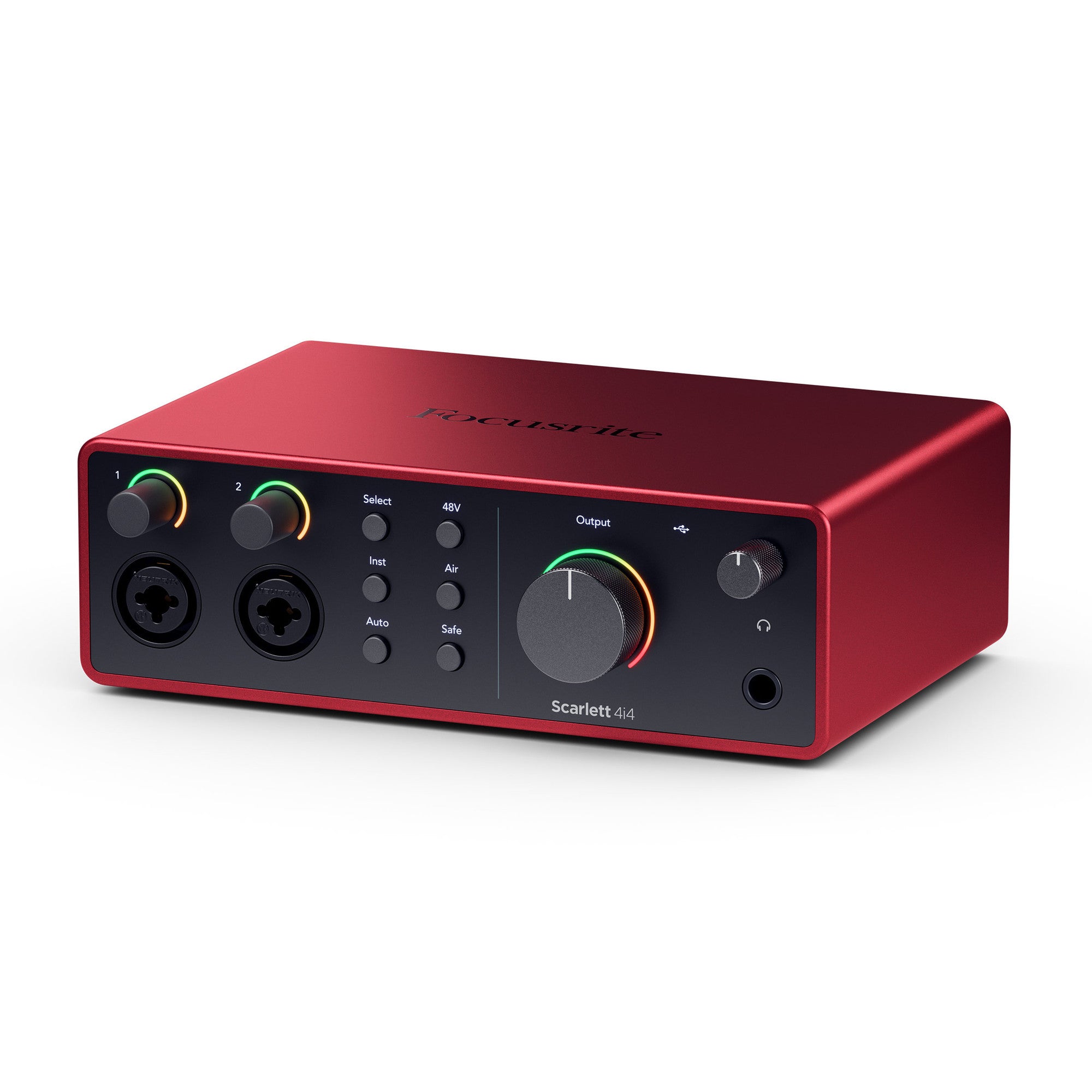

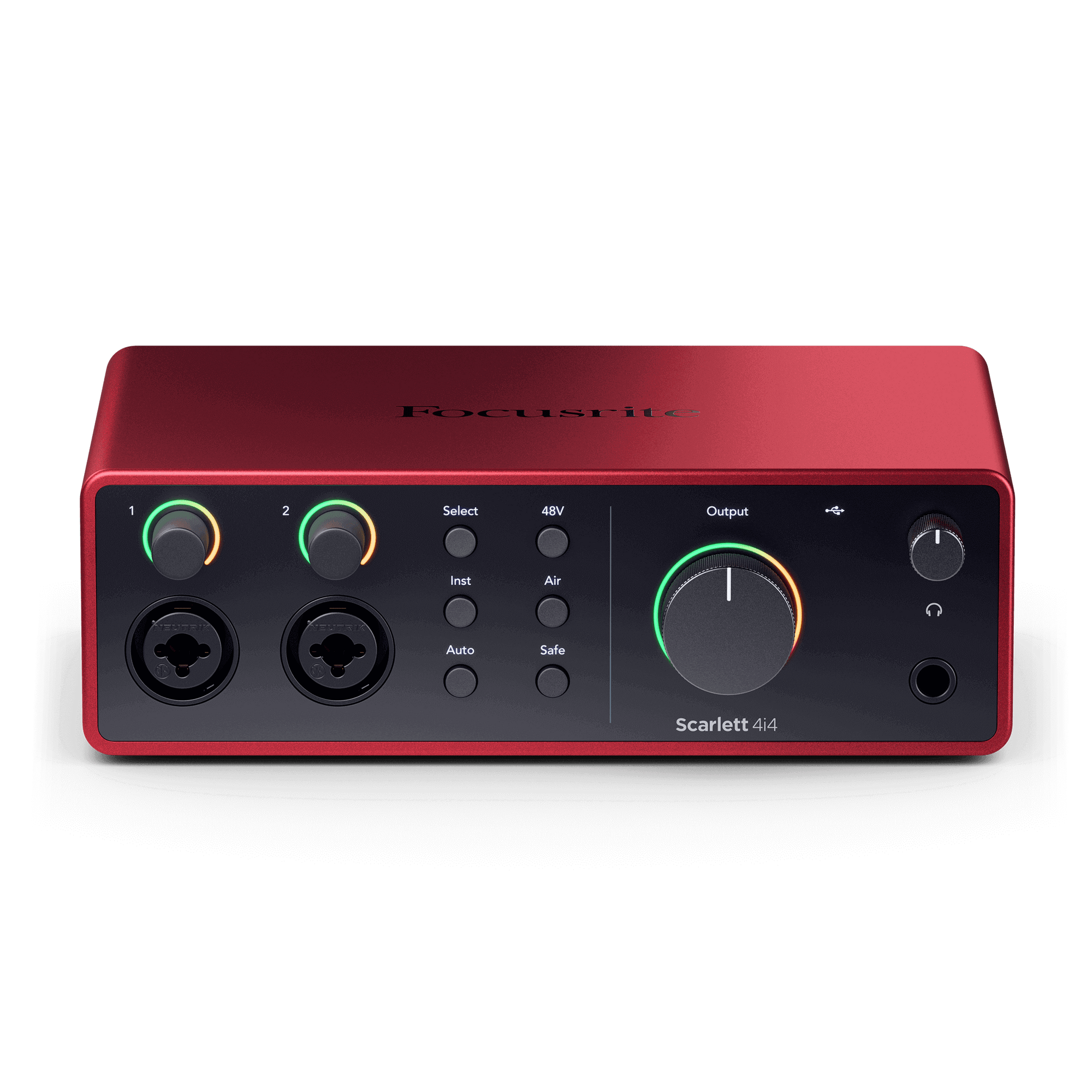

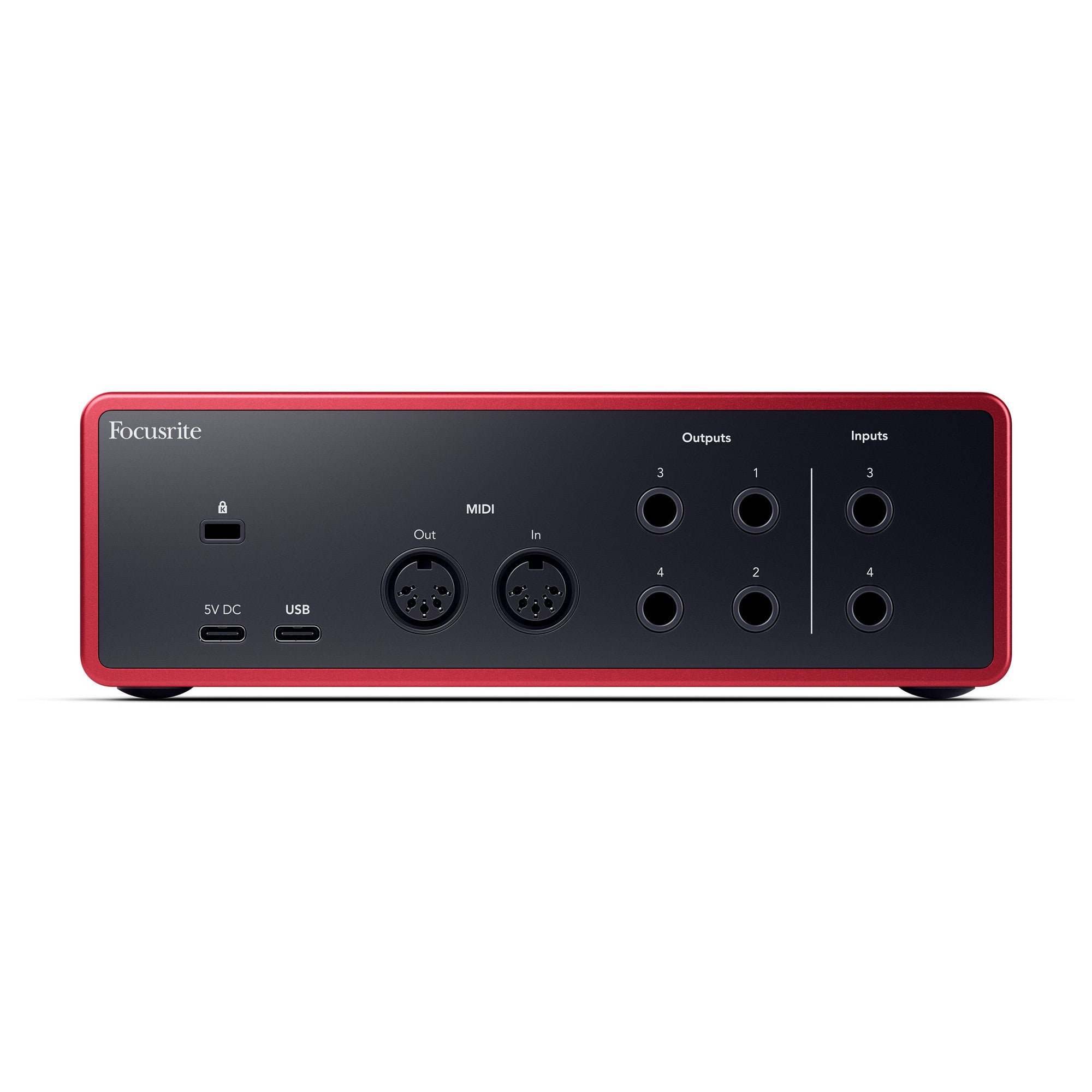

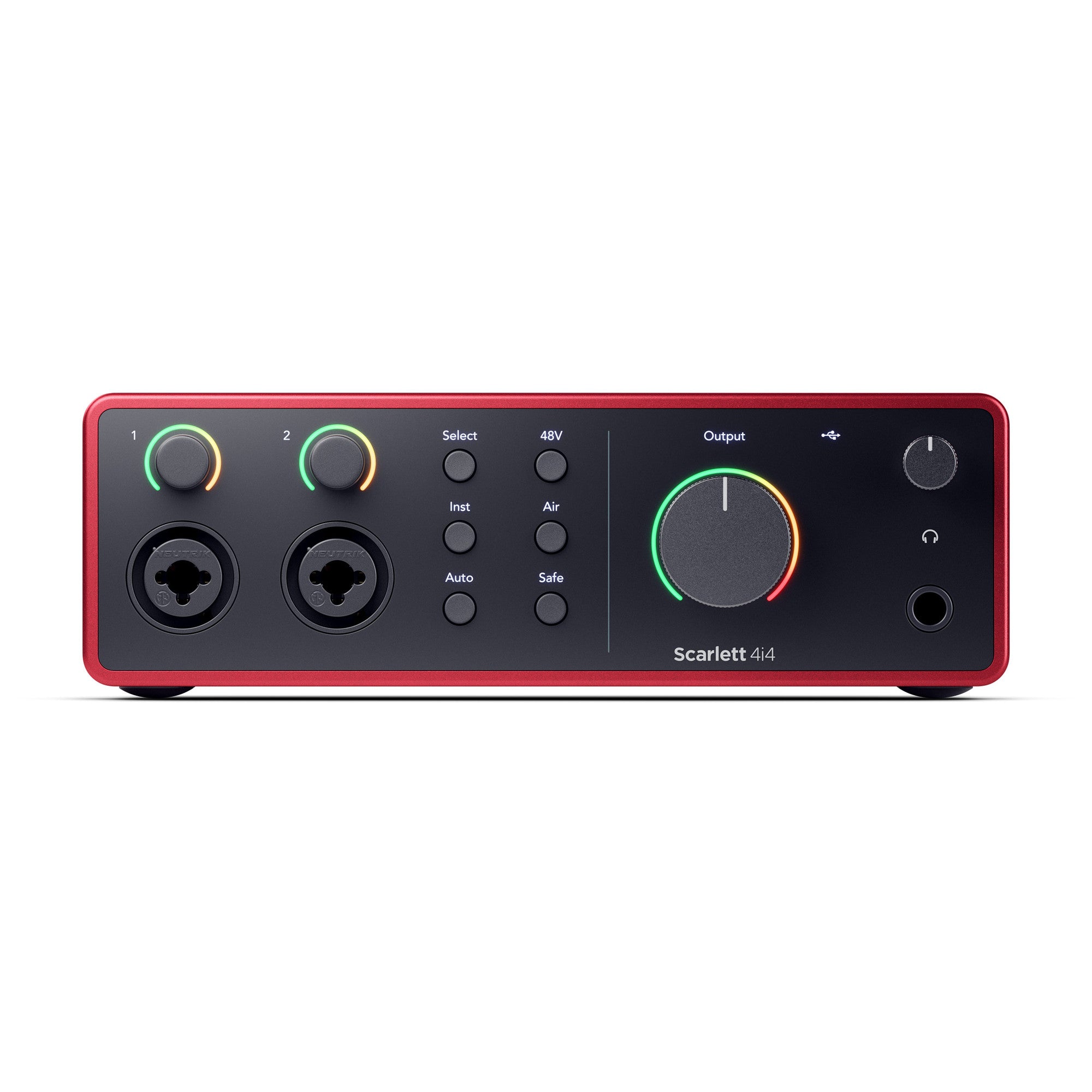

Focusrite Scarlett 4i4(4th Gen) Audio Interface

4i4 is a complete, compact studio hub for all your instruments. Get two of our most detailed, ultra-low-noise mic preamps, along with instrument, line, and MIDI connections for your keys, guitars, synths, grooveboxes, and controllers. Your headphones and line outputs each get their own mix, so you can adapt your studio setup to suit the session.

Features :

• Two ultra-low-noise mic/line/instrument preamps
• Two additional line inputs
• Two Air preamp modes for classic console sound
• Clip Safe and Auto Gain modes
• MIDI In and Out
• Includes Hitmaker Expansion software bundle
• Plus Pro Tools Intro+ and Ableton Live Lite

Specifications :

Overview

• Number of Microphone Preamps - 2
• Phantom Power - Yes
• Instrument Inputs - 2
• Line Inputs - 4
• Air Mode - Yes
• Auto Gain - Yes
• Clip Safe - Yes
• Line Outputs - 4
• Headphone Outputs - 1
• Loopback - Yes
• MIDI - Yes
• Connectivity - USB Type-C
• Protocol - USB 2.0
• Form Factor - Desktop
• Simultaneous I/O - 6 x 6 (including Loopback inputs)
• A/D Resolution - 24-bit/192 kHz
• Bus Powered - Yes (1.5A)

Instrument inputs

• Frequency Response - 20-20kHz ± 0.15dB
• Dynamic Range - 113dB (A-Weighted)
• THD+N - -80dB @ minimum gain
• Maximum Input Level - 12dBu
• Gain Range - 62dB
• Impedance - 1MΩ

Line outputs (Balanced)

• Frequency Response - 20-20kHz ± 0.02dB
• Dynamic Range - 120dB
• THD+N - -112dB
• Maximum Output Level - 16dBu
• Impedance - 100Ω

Headphone outputs

• Frequency Response - 20-20kHz ± 0.1dB @ 33Ω / 300Ω
• Dynamic Range - 112dB @ 33Ω, 115dB @ 300Ω

• THD+N - -99dB @ 33Ω, -108dB @ 300Ω

• Maximum Output Level - 5dBu into 33Ω, 11dBu into 300Ω

• Maximum Output Power - 57mW into 33Ω, 27mW into 300Ω

• Impedance - 11Ω

Dimensions

• Height - 60mm
• Width - 180mm
• Depth - 130mm
• Weight - 0.798kg

Supported sample rates

• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Analogue to Digital Converter

• THD+N - -110dB
• Dynamic Range - 120dB

Digital to Analogue Converter

• THD+N - -115dB
• Dynamic Range - 130dB (A-Weighted)

Microphone inputs
