Yamaha DBR12 Powered Loudspeaker

The Yamaha DBR12 is a compact, portable powered loudspeaker known for its high performance and versatility. It’s suitable for use in various settings, including live music events, speeches, and DJ setups. It is designed to deliver clear, powerful sound and is robust enough for both indoor and outdoor use.

Specifications:

• Type: 12-inch powered loudspeaker
• Frequency Response: 52 Hz - 20 kHz
• Power Output:
  • LF Driver Power: 500 watts (Class D)
  • HF Driver Power: 500 watts (Class D)
  • Total Power Output: 1000 watts (peak)
• Coverage Pattern: 90° x 60° (H x V)
• Crossover Frequency: 1.8 kHz
• Amplifier Type: Class D
• Driver Configuration:
  • LF Driver: 12-inch cone
  • HF Driver: 1.4-inch titanium compression driver

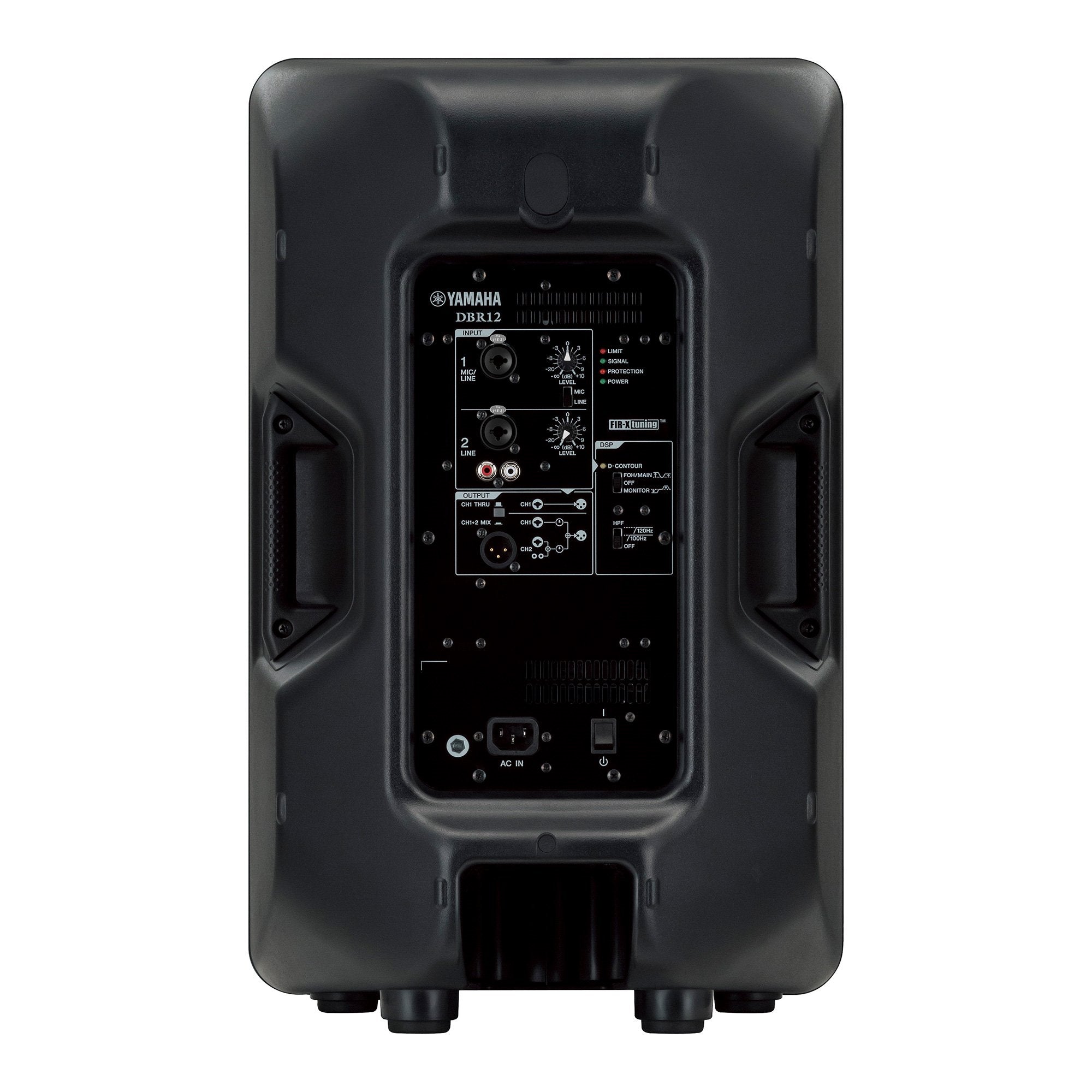

• Inputs:
  • Mic/Line Input: XLR-1/4" combo jack
  • Line Input: XLR
  • Link Output: XLR
• Enclosure Material: High-quality ABS plastic
• Mounting Options:
  • Pole Mount: Yes (standard 35 mm pole mount)
  • Fly Points: Yes (for rigging)
• Dimensions:
  • Height: Approximately 640 mm (25.2 inches)
  • Width: Approximately 405 mm (15.9 inches)
  • Depth: Approximately 358 mm (14.1 inches)
• Color: Black
