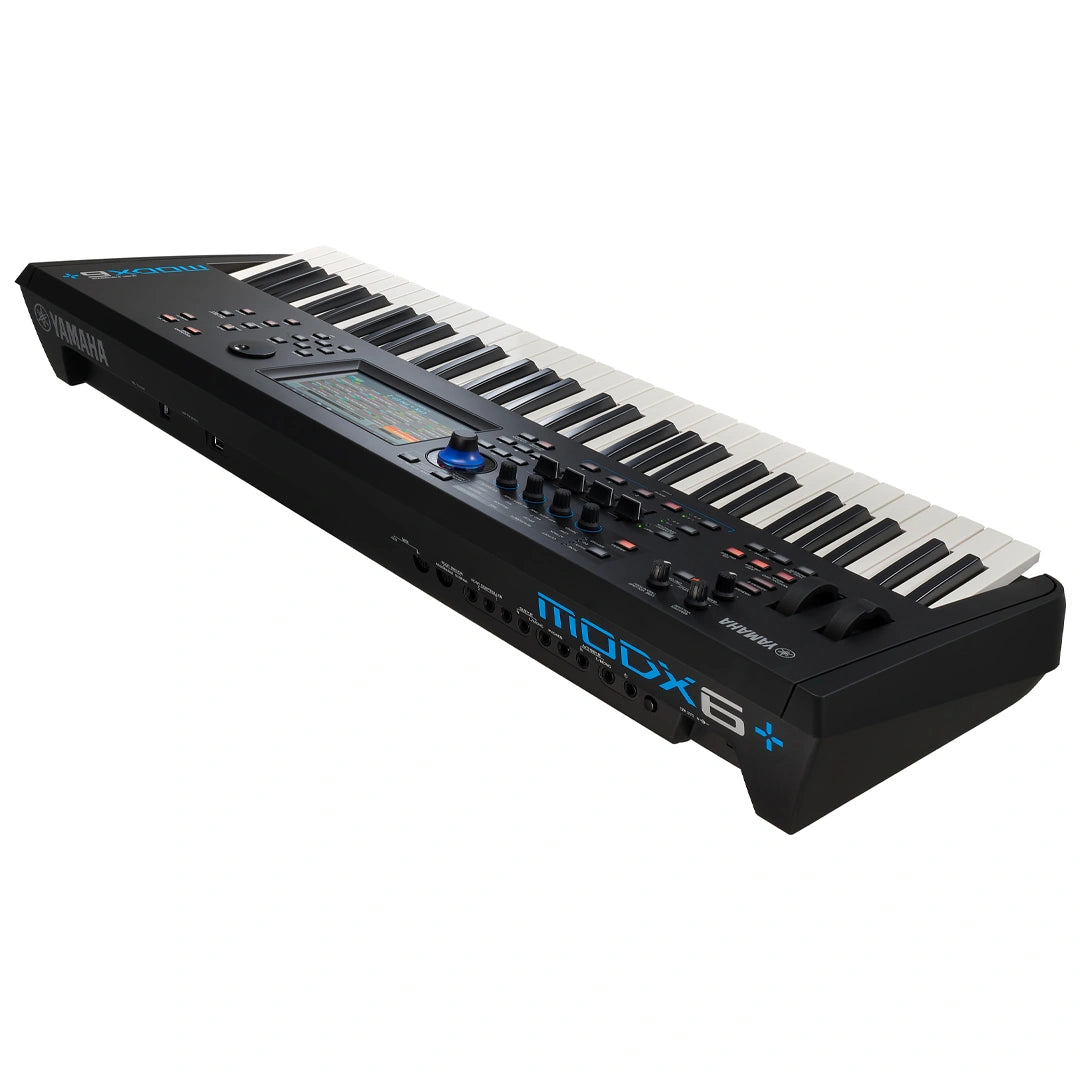

Yamaha MODX6+ Synthesizer With 61 Keys Keyboard

Imagine everything great about the compact, lightweight MODX + more sounds, more control and more synth to stand out on every stage, studio or stream. MODX+ is powered by the same innovative technologies found in our flagship MONTAGE synthesizer including the AWM2 (Advanced Wave Memory 2) sample and synthesis engine and a pure FM-X (Frequency Modulation) synth engine for amazing sound playback and complex sound design. MODX+ Motion Control brings the sophisticated automation of music production to live performances by giving you simultaneous control of up to 128 parameters. So you can shape live sound like a conductor commands an orchestra.

Specifications :

• Number of Keys In Keyboard : 61
• Type - Semi-weighted Keyboard
• Initial Touch - Yes
• Aftertouch - No
• Tone Generator - Motion Control Synthesis Engine AMW2: 8 Elements FM-X: 8 Operators, 88 Algorithms
• Maximum Polyphony - AWM2: 128 (max.; stereo/mono waveforms) FM-X: 128 (max.)
• Multi Timbral Capacity - 16 Parts (internal), Audio Input Parts (A/D*, USB*) *stereo Part
• Wave - Preset: 5.67 GB (when converted to 16 bit linear format), User: 1.75 GB
• Performance - 2,227
• Filter - 18 types
• Effects - Reverb x 12 types, Variation x 88 types, Insertion (A, B) x 88 types*2, Master Effect x 26 types *2 A/D part insertion x 83 types (Preset settings for parameters of each effect type are provided as templates) Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)
• Controllers - Master Volume, AD Input Gain knob, USB Volume, Pitch Bend wheel, Modulation wheel, Control Sliders x 4, Knobs x 4, Super Knob, Data dial
• Display - 7" TFT Color Wide VGA LCD touch screen
• Connectors - [USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (6.3 mm, standard phone jacks), [PHONES] (6.3 mm, standard stereo phone jack), A/D INPUT [L/MONO]/[R] (6.3 mm, standard phone jacks)
• Power Consumption - 16 W (when using PA-150B AC adaptor)
• Live Sets - Preset: 256 and more, User: 2,048
• Note Capacity - Approx. 130,000 notes
• Storage Size - Approx. 520,000 notes (for Patterns) and approx. 520,000 notes (for Songs)
• Note Resolution - 480 ppq (parts per quarter note)
• Tempo (BPM) - 5 – 300
• Songs - 128
• Tracks - 16 Sequence tracks
• Recording type - Real time replace, Real time overdub, Real time punch in/out
• Patterns - 128
• Arpeggio - Parts: 8 Parts simultaneous (max.), Preset: 10,239 types User: 256 types
• Sequence formats - MODX original format, SMF formats 0, 1
