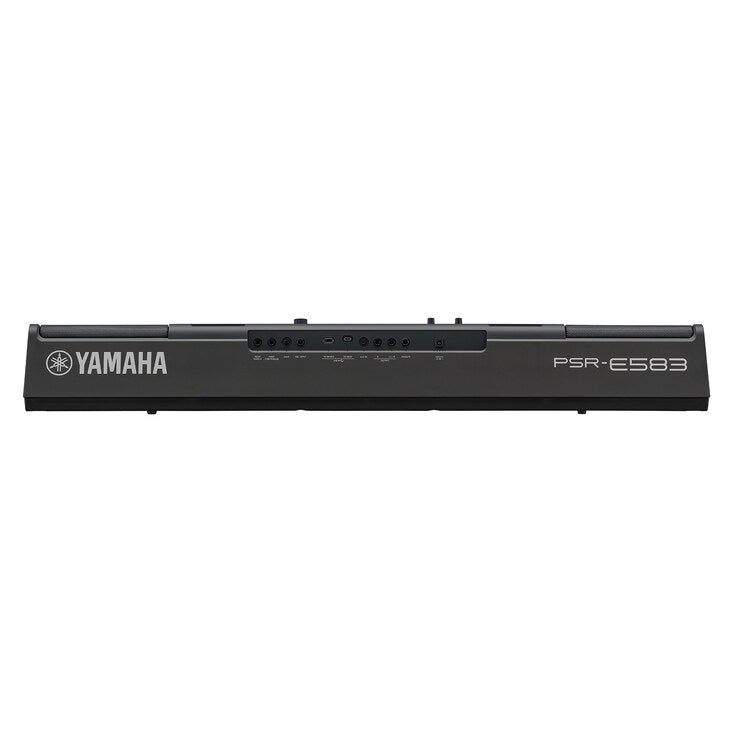

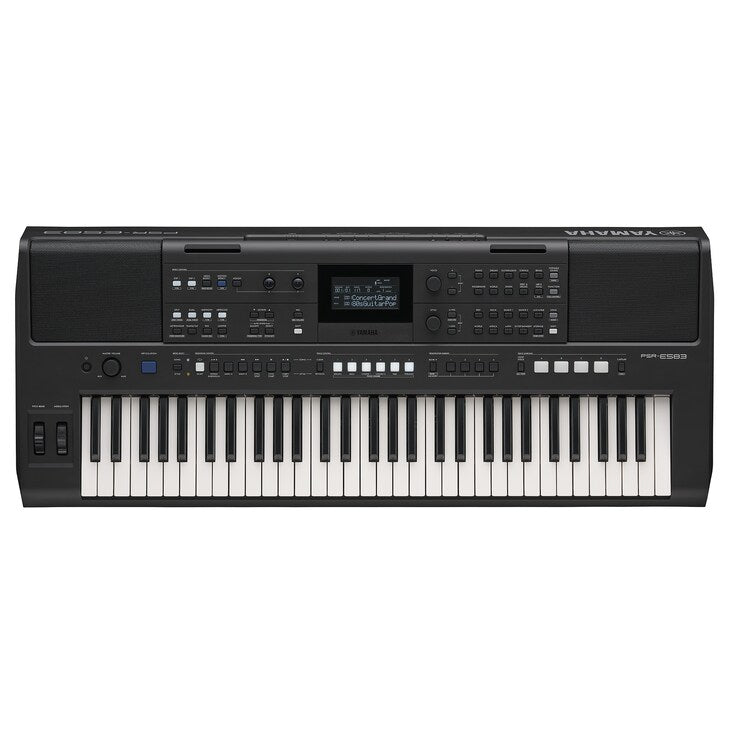

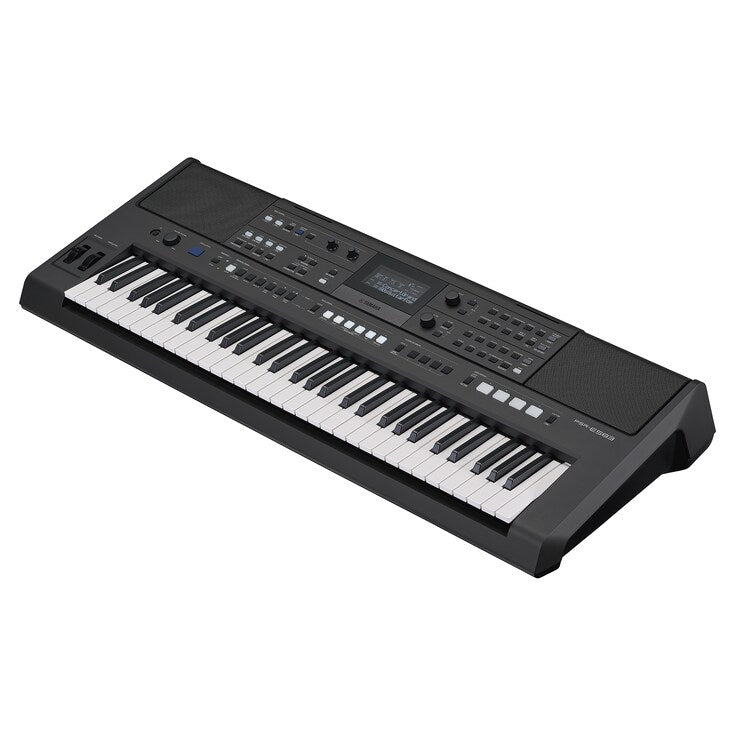

Yamaha PSR-E583 Portable Keyboard

Made for performers, the Yamaha PSR-E583 is a portable 61-key keyboard packed with expressive sounds, easy controls, and everything you need to take the stage.

Features :

• 61-key touch-sensitive keyboard for expressive playing and dynamics.
• Extensive sound library with over 800 instrument voices including Super Articulation Lite voices.
• 345 preset auto-accompaniment Styles for backing and creative performance.
• Live Control knobs and Pitch Bend wheel for real-time sound shaping and performance control.
• Built-in effects including DSP and Master EQ for polished sound quality.
• Quick Sampling & Looper tools to capture and layer sounds on the fly.
• Modern connectivity with USB-C (MIDI/Audio), USB-A (to device), mic input, AUX, and headphone output.
• Powerful onboard amplification with high-output speakers and Mega Boost for stage-ready volume.
• Portable design with intuitive interface suitable for beginners to advanced players

Specifications :

• Dimensions Width - 992 mm (39-1/16”)
• Height - 136 mm (5-3/8”)
• Depth - 404 mm (15-7/8”)
• Weight - 7.3 kg (16 lb, 1 oz) (not including batteries)
• Packing Box Width - 1068 mm (42-1/16")
• Height - 216 mm (8-1/2")
• Depth - 500 mm (19-11/16")
• Number of Keys - 61
• Type - Organ-Style
• Touch Response - Yes (Soft, Medium, Hard, Off)
• Display Type - LCD
• Backlight - Yes
• Language - English
• Panel Language - English
• Pitch Bend - Yes
• Modulation - No
• Art. Switches - Yes
• Control Knobs - 2
• Tone Generating Technology - AWM Stereo Sampling
• Number of Polyphony (Max.) - 64
• Number of Voices - 890 (352 Voices + 40 Drum/SFXKits + 40 Arpeggio Voices + 458 XGlite Voices)
• Featured Voices - 19 S.Art Lite Voices
• Compatibility GM - Yes
• XGlite - Yes
• Number of Preset Styles - 345
• Fingering - Multi Finger, Smart Chord
• Style Control - ACMP ON/OFF, SYNC START, SYNC STOP, START/STOP, INTRO/ENDING/rit., MAIN A, MAIN B, TRACK ON/OFF
• One Touch Setting (OTS) - Yes
• Auto Chord Play - 100 Chord Progressions + 10 USER Chord Progressions
• Expansion Style - 10
• Compatibility - Style File Format (SFF)
• DSP - DSP1: 41 types + DSP2: 12 types
• Motion Effect - 57 types
• Reverb - 15 types
• Chorus - 7 types
• Master EQ - 5 types
• Motion Effect - 57 types
• Dual/Layers - Yes
• Split - Yes
• Melody Suppressor - Yes
• Harmony/Echo - 26 types
• Arpeggio - 164 types
• Number of Preset Songs - 2
• Number of Songs - 10
• Number of Tracks - 6 (5 Melody + 1 Style)
• Data Capacity - Approx. 19,000 notes (total for all 10 Songs)
• Playback - SMF (Formats 0 & 1)
• Recording - Original File Format (SMF 0 conversion function)
• Recording Time (max.) - 80 minutes (approx. 0.9 GB) per Song
• Playback - WAV (44.1 kHz, 16-bit, stereo)
• Recording - WAV (44.1 kHz, 16-bit, stereo)
• Sampling Type - Oneshot, Loop
• Samples (Preset/User) - 4
• Sampling Time - Approx. 9.6 sec
• Sampling Sources - AUX IN, MIC INPUT, USB audio interface, WAV format files
• Sampling Format - Original File Format (16-bit, stereo)
• Sampling Rate - 44.1 kHz
• USB audio interface - 44.1 kHz, 16-bit, stereo
• Number of Buttons - 4 (x 8 banks)
• Control - Freeze
• Metronome - Yes
• Tempo Range - 11-280
• Transpose - -12 – 0 – +12
• Tuning - 427.0 – 440.0 – 453.0 Hz (approx. 0.2 Hz increments)
• Octave Button - Yes
• Scale Type - 5
• PIANO Button - Yes
• Looper - Yes
• Megaboost - 2 steps (approx. +3 dB, and +6 dB)
• Storage Internal Memory - Approx. 1.72 MB
• External Drives - USB flash drive
• DC IN - 16V
• AUX IN - Stereo mini jack × 1
• Headphones - Standard stereo phone jack × 1
• Foot Switch - Yes (Sustain, Arpeggio Hold, Sustain+Arpeggio Hold, Articulation)
• Expression Pedal - Yes
• USB TO DEVICE - Yes (USB Type-A)
• USB TO HOST - Yes (USB Type-C)
• LINE OUT - Standard stereo phone jacks: L/L+R, R
• Microphone - Standard stereo phone jack x 1
• Amplifiers - 12 W x 2
• Speakers - 12 cm x 2
• Power Supply Adaptors - PA-300C (Output : DC 16 V, 2.4 A)
• Batteries - Six “AA” size alkaline (LR6), manganese (R6) or Ni-MH rechargeable batteries
• Power Consumption - 13 W (When using PA-300C AC adaptor)
• Auto Power Off Function - Yes (Disabled/5/10/15/30/60/120 minutes)
• Included Accessories - Owner’s Manual and Music Rest
