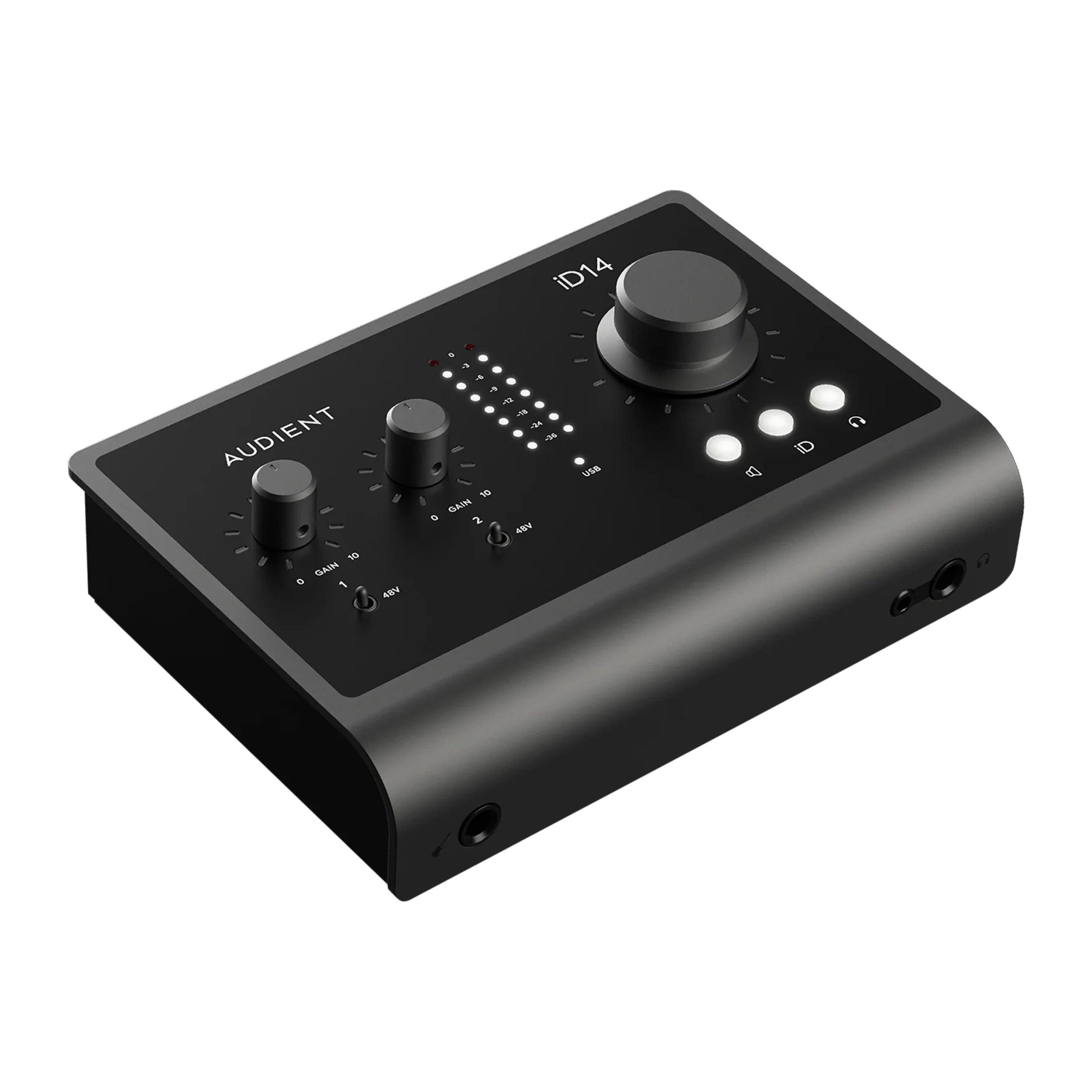

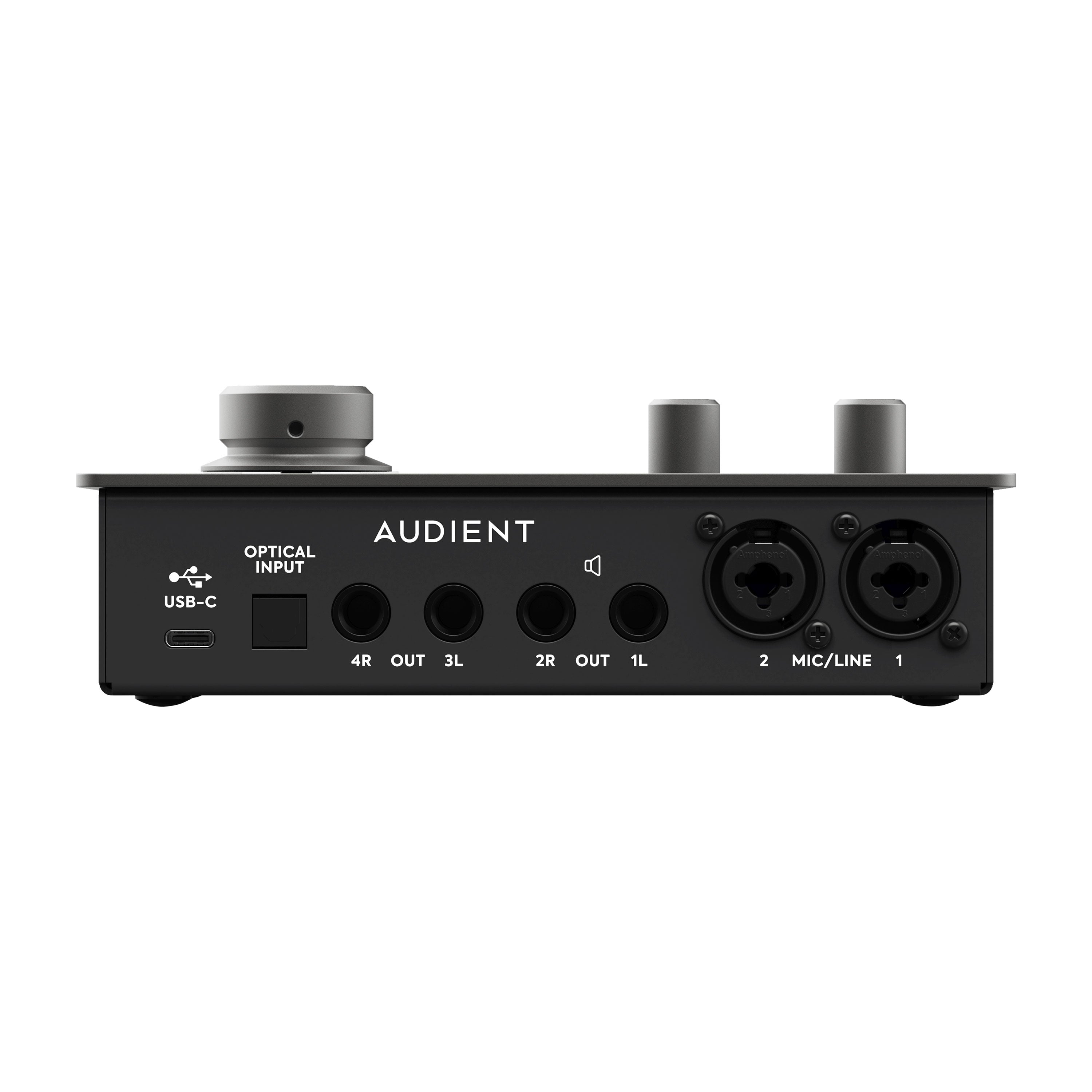

Audient ID14-MK2 Audio Interface

Meet iD14, the award winning audio interface built for making music like a pro. Featuring two fully analogue Audient Console Mic Preamps, Advanced 32-bit AD/DA Converters and the ability to expand via ADAT – iD14 packs everything you need to get studio quality recordings into a small, easy to use desktop package.

Features :

• 2 x Audient Console Mic Preamps
• Class Leading AD/DA Converters
• 1 x JFET Instrument Input
• 1 x ADAT Input
• 4 x Line Outputs
• 1 x Dual Headphone Output
• Speaker + Headhphone On/Off Button
• +48V Switches
• ScrollControl and Ultra-low Latency Software Mixer (Direct Monitoring)
• Audio Loop-back• True Phantom Power over USB
• USB3.0 Bus Powered
• 24bit/96khz
• Mac & Windows Compatible
• All Metal Design
• Free Software + Plugins

Specifications :

D.I / Instrument Input :

• RANGE:+58dB
• LINEUP:12dBu = 0dBFS
• THD+N @ 0dBu:0.1%
• SNR:100dBu A-Weighted
• FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 20kHz
• 1/4” TS JACK:Tip (Hot) & Sleeve (Shield)

Microphone Preamplifier :

• GAIN RANGE: 58dB
• LINEUP:12dBu = 0dBFS
• MIC MAX INPUT LEVEL:12dBu
• MAX INPUT LEVEL:21dBu
• INPUT IMPEDANCE (Mic):2.8k
• INPUT IMPEDANCE (Line):>8k
• THD+N @ 0dBu:0.00170%
• THD+N @ 0dBu MAX GAIN:<0.04%
• SNR:101dBu A-Weighted
• EIN:129dB A-Weighted
• CMRR @ 1k:>75dB
• CROSSTALK:>-100dB
• FREQUENCY RESPONSE – MIN GAIN:±0.5dB 10Hz to 40kHz
• PHANTOM POWER: (48V +/-4V @ 10mA/Channel)
• XLR COMBI FEMALE:Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
• 1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)

Analogue to Digital Converter :

• THD+N @ -1dBFS:0.001%
• DYNAMIC RANGE:120dB A-Weighted
• CMRR:>80dB
• FREQUENCY RESPONSE:±0.5dB 10Hz to 40kHz

Line Outputs (DAC) :

• LINEUP:12dBu = 0dBFS
• THD+N @ -1dBFS:0.0006%
• DYNAMIC RANGE:125.5dB A-Weighted
• CROSSTALK:>120dB
• FREQUENCY RESPONSE:±0.1dB 10Hz to 40kHz
• 1/4” TRS JACK:Tip (Hot), Ring (Cold) & Sleeve (Shield)
